Insert 3D Models

PREVIOUS NEXT

  • INSERTING 3D MODELS
  • Step 1 - Open the document that you want to insert the 3D Model.

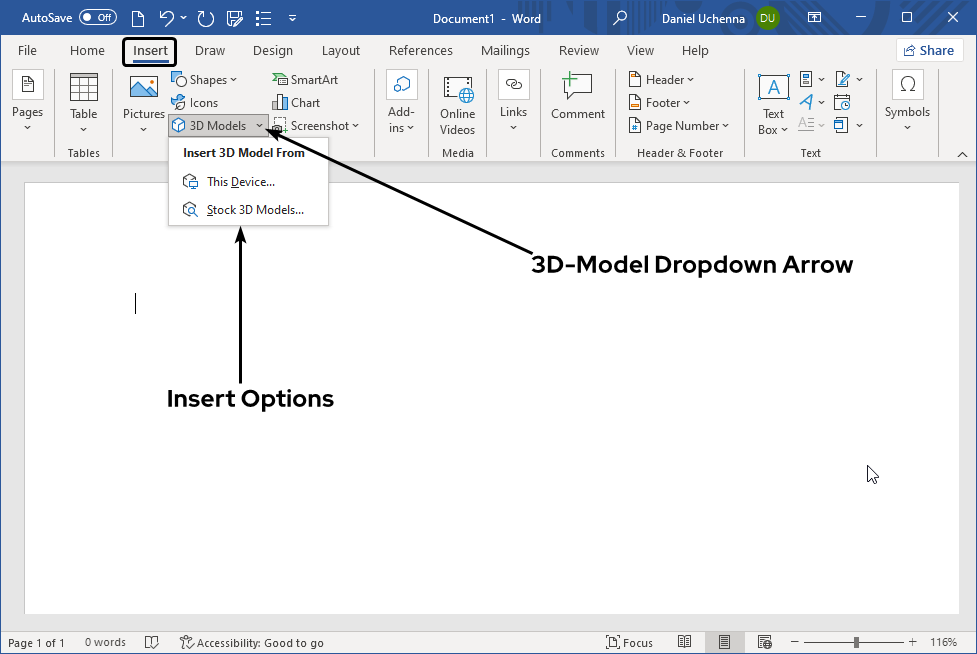

  • Step 2 - Click on the Insert tab, go the Illustrations group and click on the 3D Models dropdown arrow. From the dropdown list displayed, if you have 3D Models on your device, click the From this Device and proceed to insert it. But if you don't have 3D Models on your device, click the Stock 3D Models and proceed to Step-3.
    • insert-3d-models

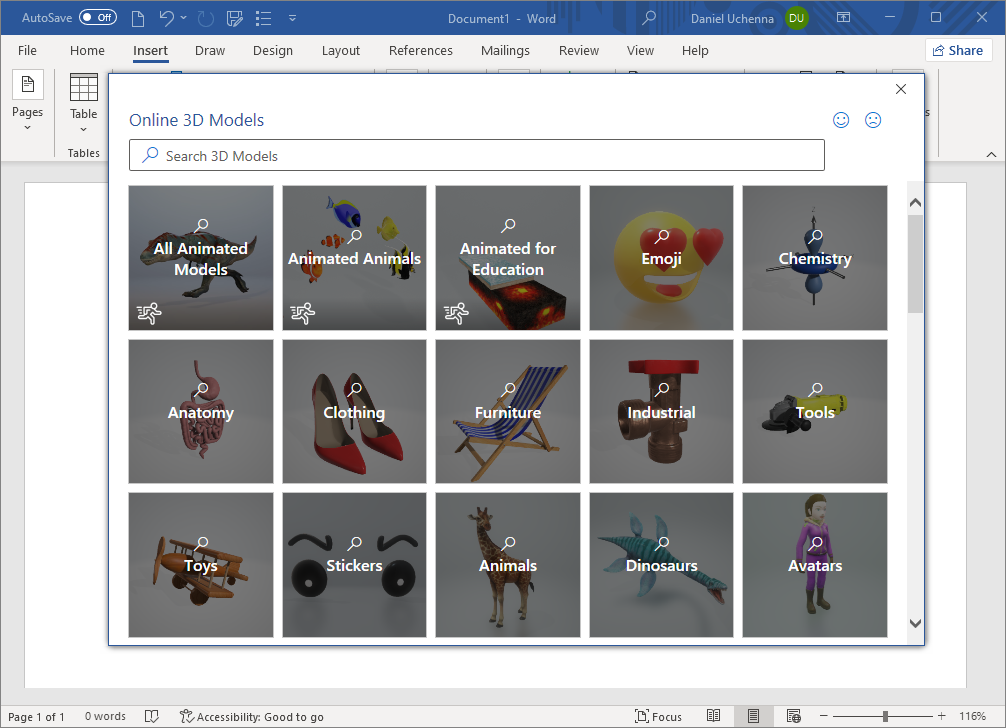

  • Step 3 - A window of 3D Models will be opened. You can use the search input to search for the name of the 3D Models that you want to insert.

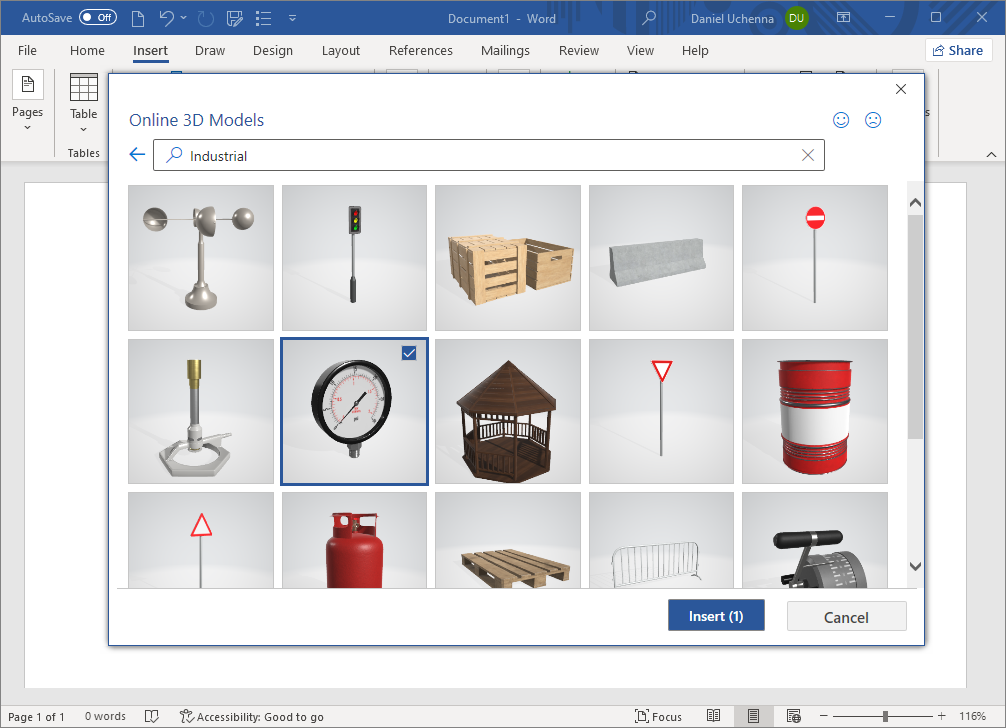

    Click on the category you want to select from, then click on the 3d model to mark it. If you want to insert more than one 3d models, click on them. After you have finished selecting the 3d models that you want to insert, click on the Insert button.
    • insert-3d-models
    insert-3d-models

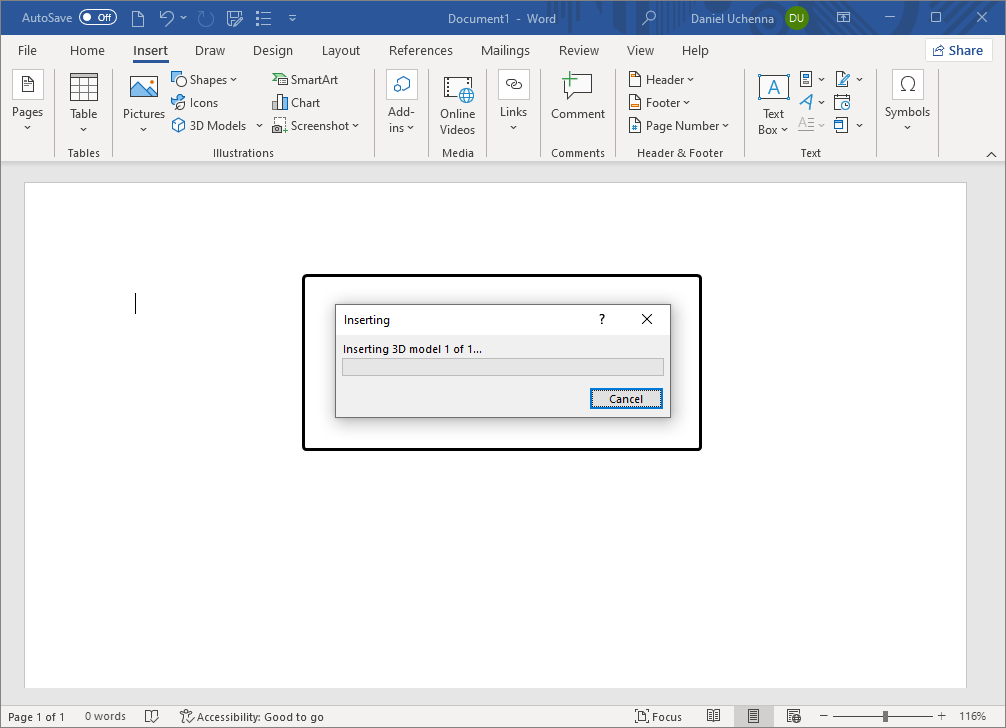

  • Step 4 - A downloading dialog box will display showing the downloading progress of the 3d Model. This will only take few seconds depending on how many 3d models you are inserting at once.
    • insert-3d-models

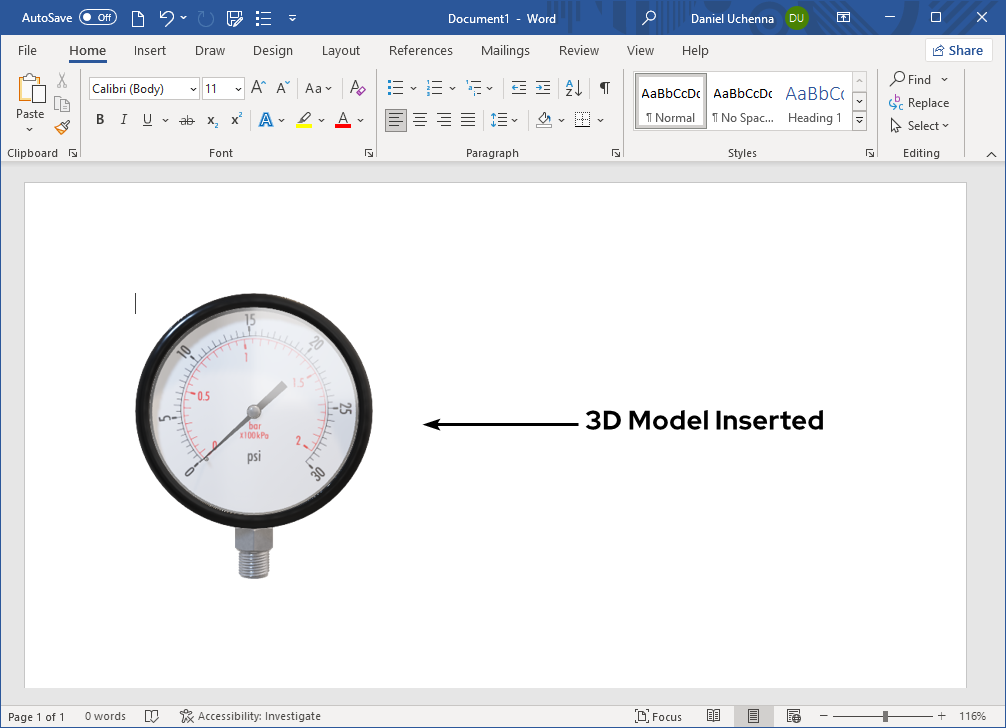

  • Step 5 - 3D Models successfully inserted into the document.
    • insert-3d-models
  • FORMATTING 3D MODELS
  • Step 1 - Click on the 3D Model you want to format.

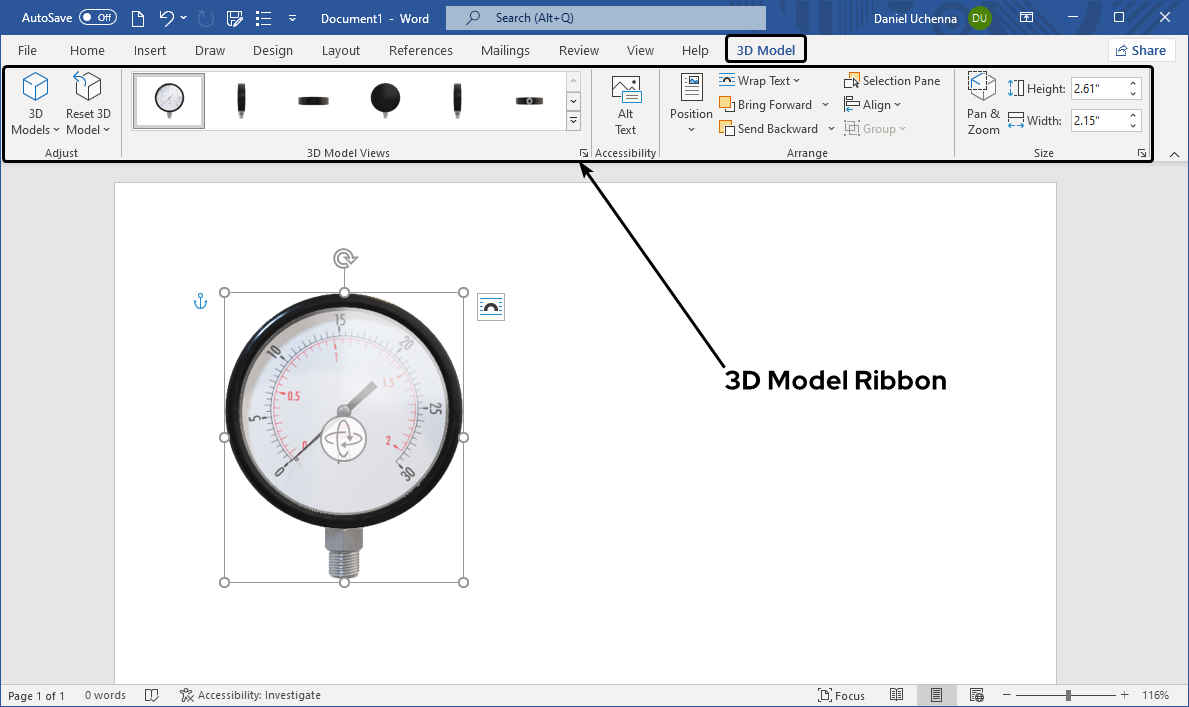

  • Step 2 - In the menu tab, click on the 3D Model tab, which will bring out different groups of related commands for you to use and format the screenshot.
    • formatting-3d-model

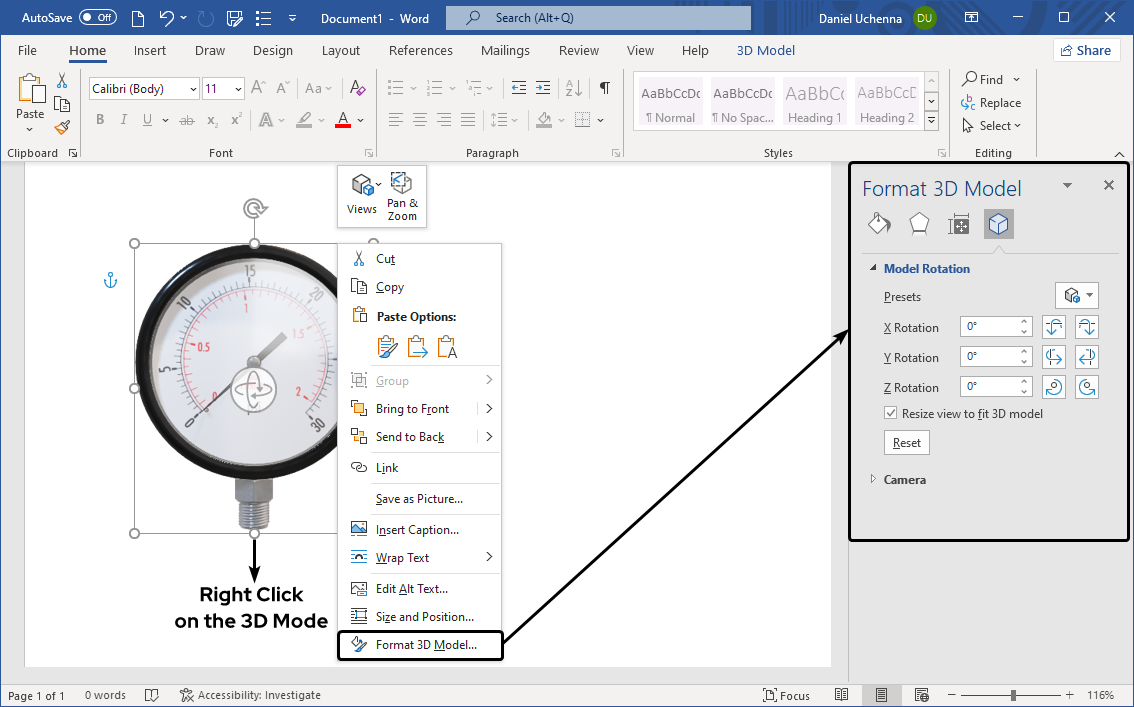

  • Step 2 (Alternate formatting) - Right click on the icon you want to format, from the dropdown list, move to Format 3D Model and click on it, (This will open the format 3d model pane from the right side of your ms-word document) then select the options you want to use and start formatting the 3d model as you want.
    • formatting-3d-model
