Insert Shapes and SmartArts

PREVIOUS NEXT

Shapes and smart art are most times used in data presentation for clear explanation. In this tutorial, I will be showing you how to insert shapes and smart art into a worksheet in Excel.

  • INSERTING SHAPES
  • Step 1 - Open the worksheet that you want to insert the picture in your worksheet.

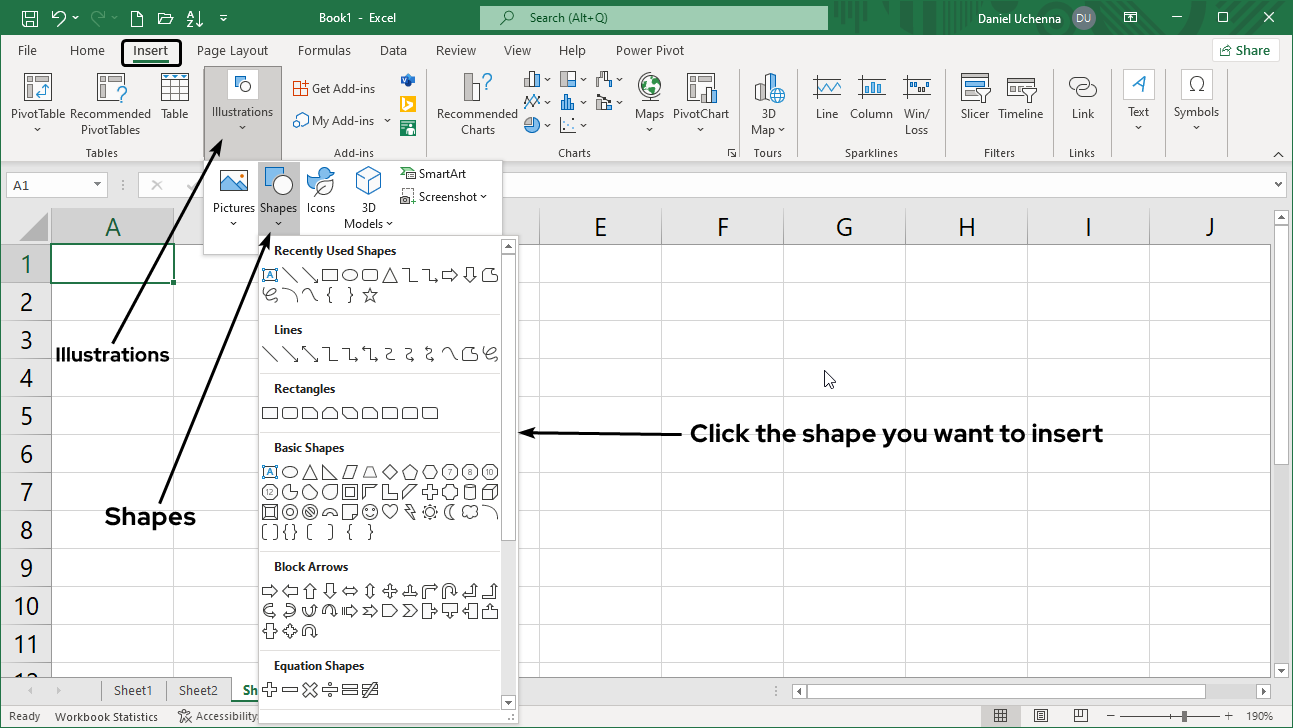

  • Step 2 - Click on the Insert tab, go the Illustrations group and click on the Illustrations option. This will display the full illustrations group of commands. From the illustration group of commands click the Shapes option.
    • insert-shapes
  • Step 3 - From the options displayed, click on the shape that you want to insert (notice your mouse pointer will change to plus sign (+) after clicking on the shape)

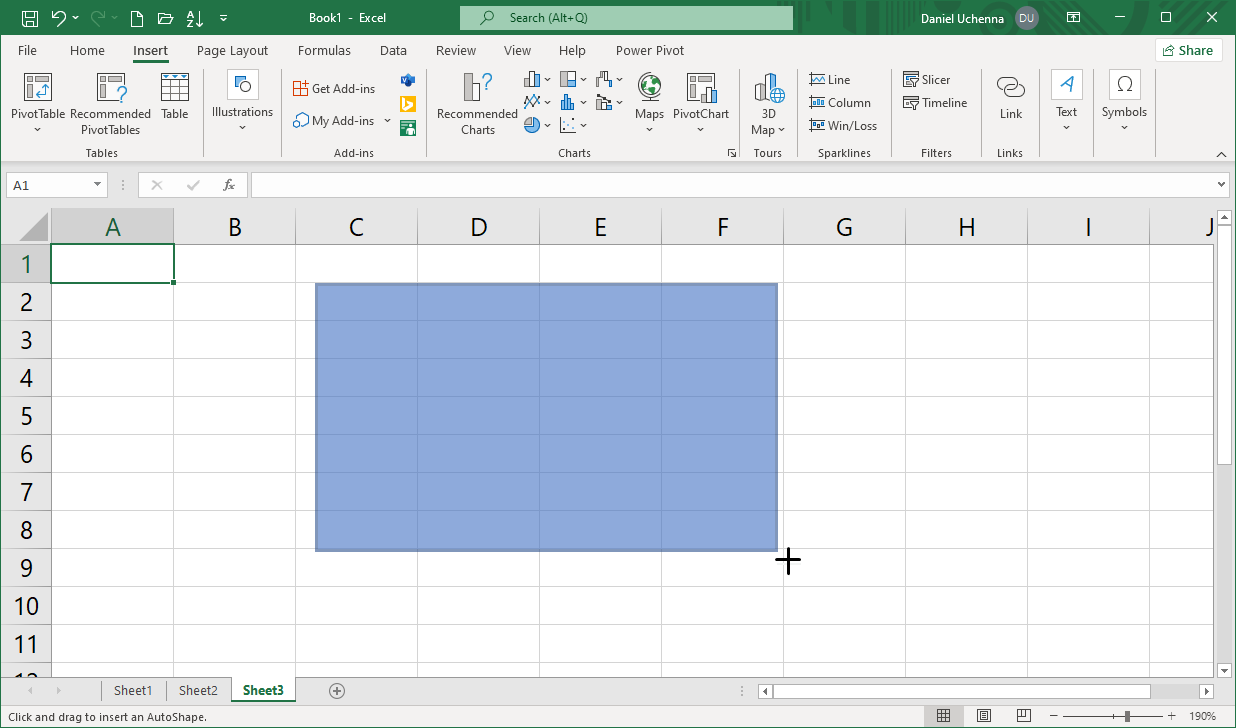

  • Step 4 - Move your mouse pointer to the place in your worksheet that you want to insert the shape, then hold the click button and draw the shape to your desired size and release the click button.
    • insert-shapes

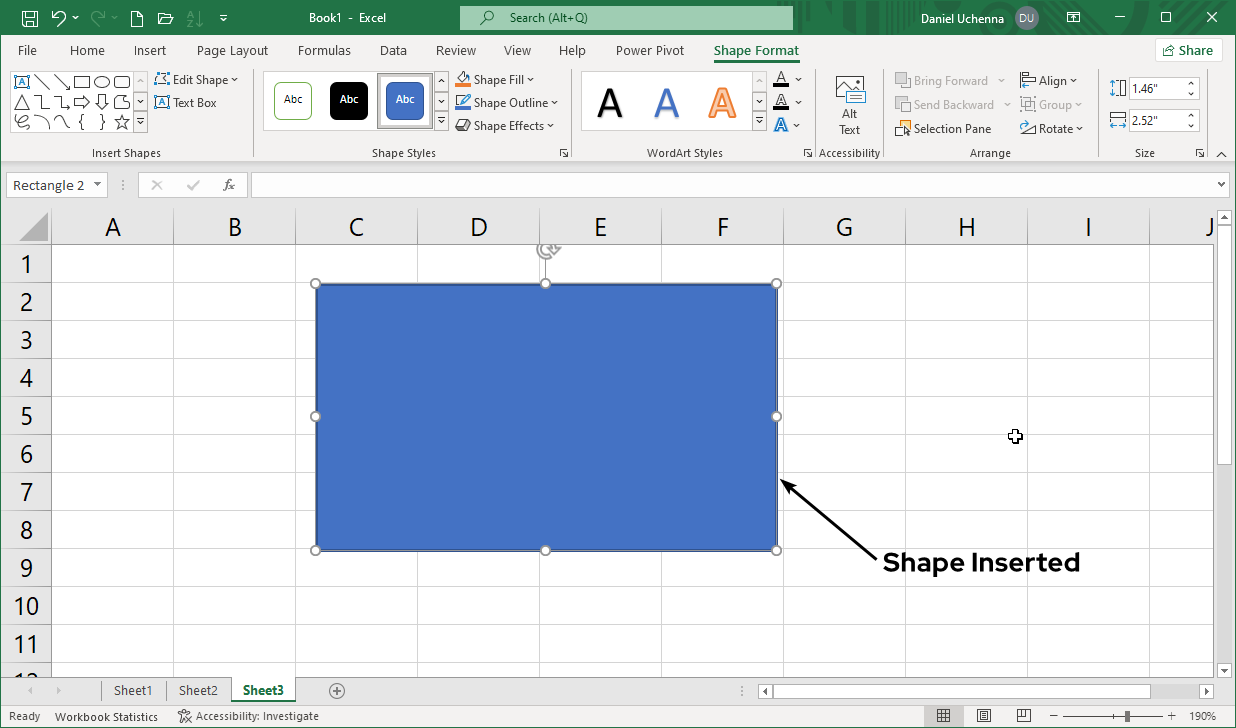

  • Step 5 - The shape will be successfully inserted.
    • insert-shapes
    tips
    TIP:

    To insert a perfect shape with distorting its widths or height. hold down the Shift key on your keyboard, while drawing the shape.

  • FORMATTING INSERTED SHAPES
  • Step 1 - Click on the shape you want to format.

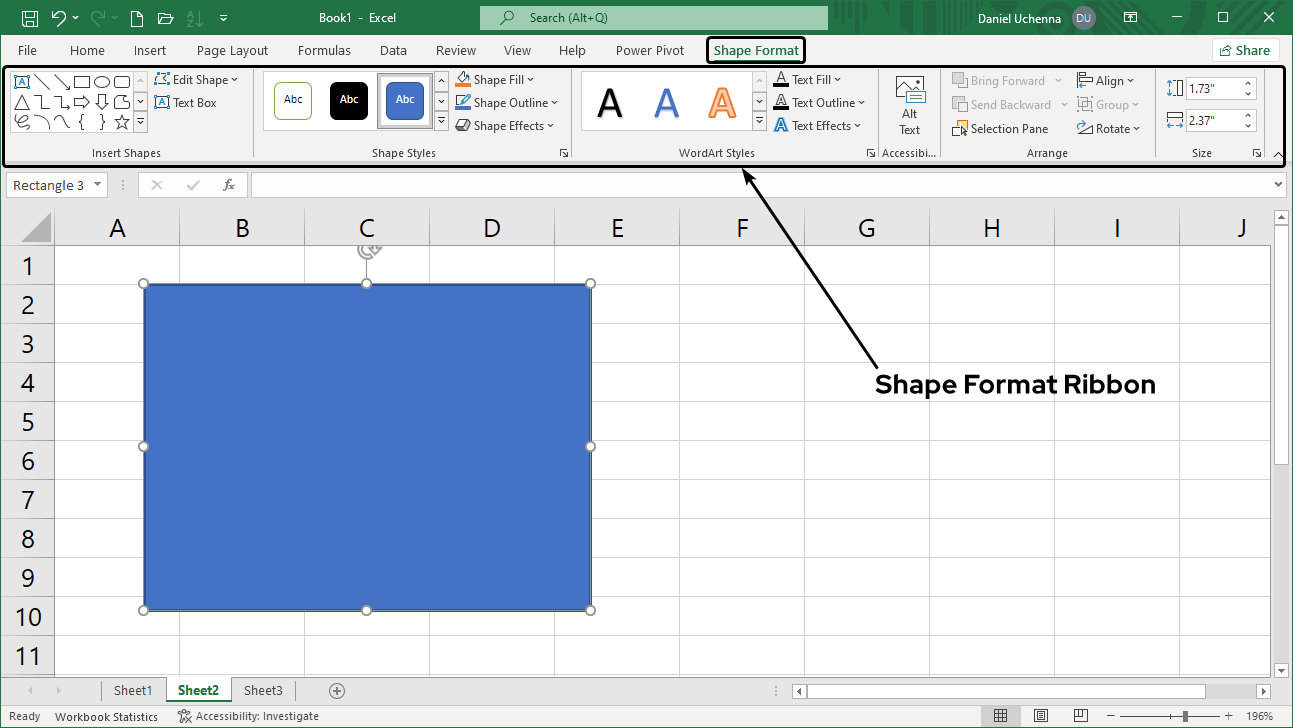

  • Step 2 - In the menu tab, the Shape Format tab will be selected. This displays different groups of related commands for you to use and format the shape.
    • formatting-inserted-shapes
    note
    NOTE:

    When you insert a shape, the Format Shape tab will automatically show in the menu tab and display its ribbon

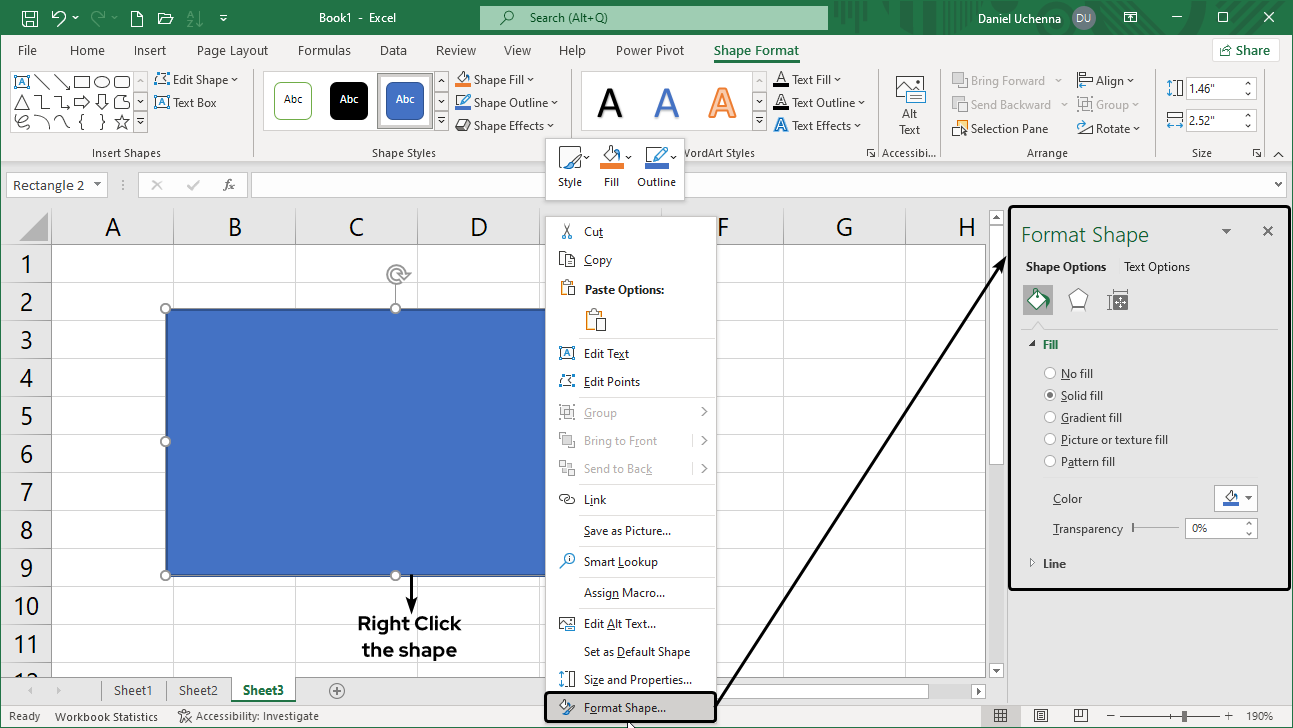

  • Step 2 (Alternate formatting) - Right click on the shape you want to format, from the dropdown list, move to Format Picture and click on it, (This will open the Format Shape pane, from the right side of your excel workbook) then select the options you want to use and start formatting the shape.
    • formatting-inserted-shapes
  • INSERTING SMART ART
  • Step 1 - Go to the worksheet that you want to insert the SmartArt.

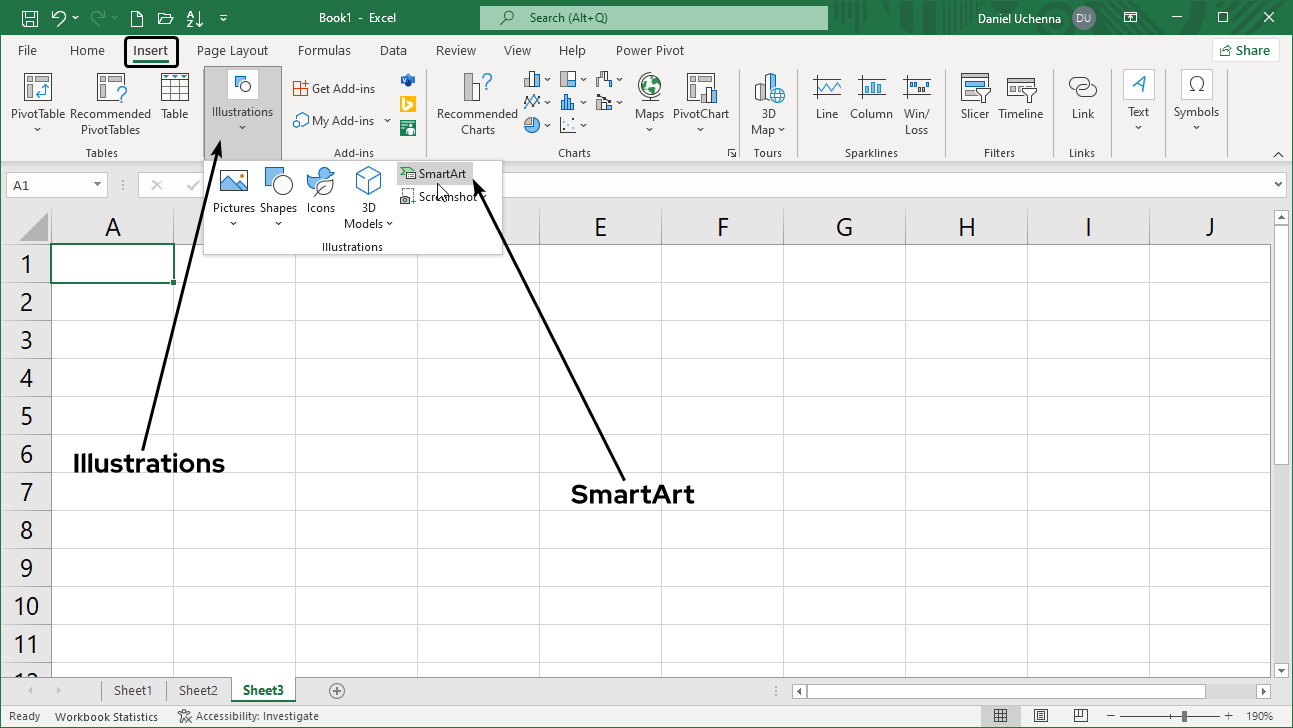

  • Step 2 - Click on the Insert tab, go the Illustrations group and click on the Illustrations option. This will display the full illustrations group of commands. Click on the SmartArt option. (This will bring out the Smart Art Graphic dialog box)
    • insert-smart-art

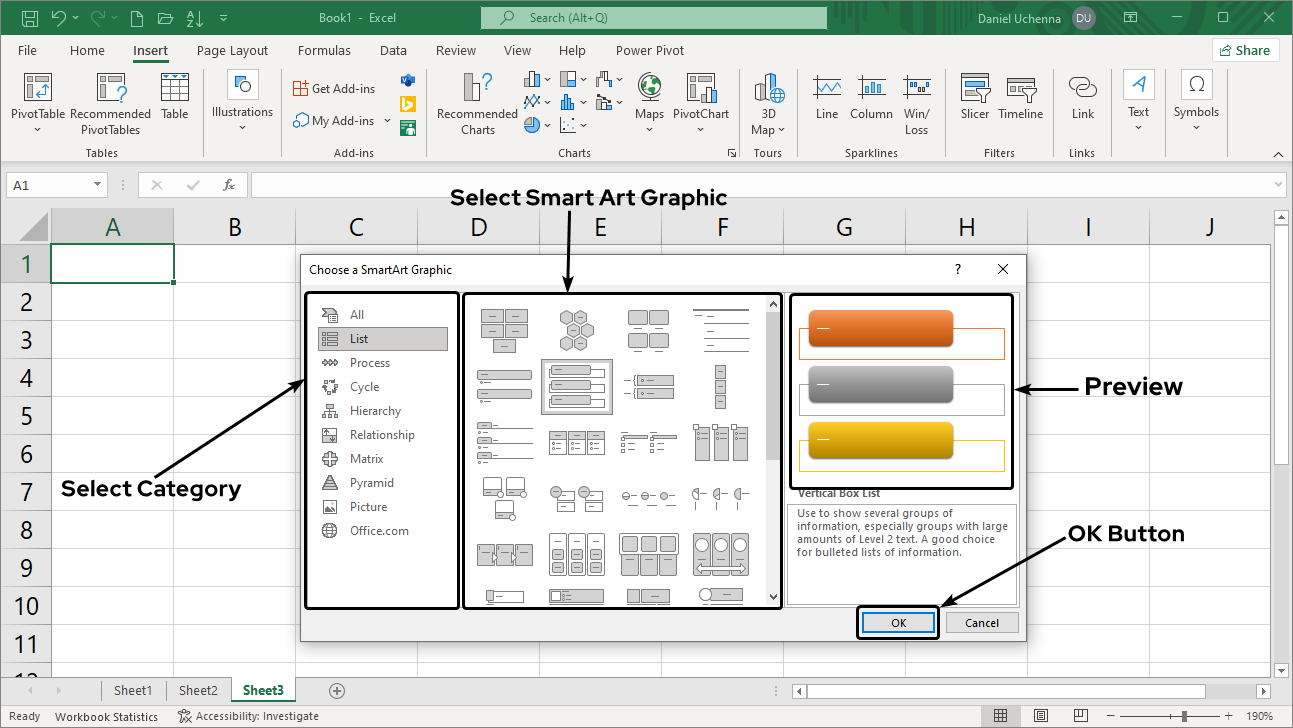

  • Step 3 - From the dialog box, in the first column click on the category of smart art you want to see.
    On the second column click on the smart art graphic you want to use. The third column shows the preview of the smart art graphic you are about to insert.
    Click the Okay button to insert the smart art.
    • insert-smart-art

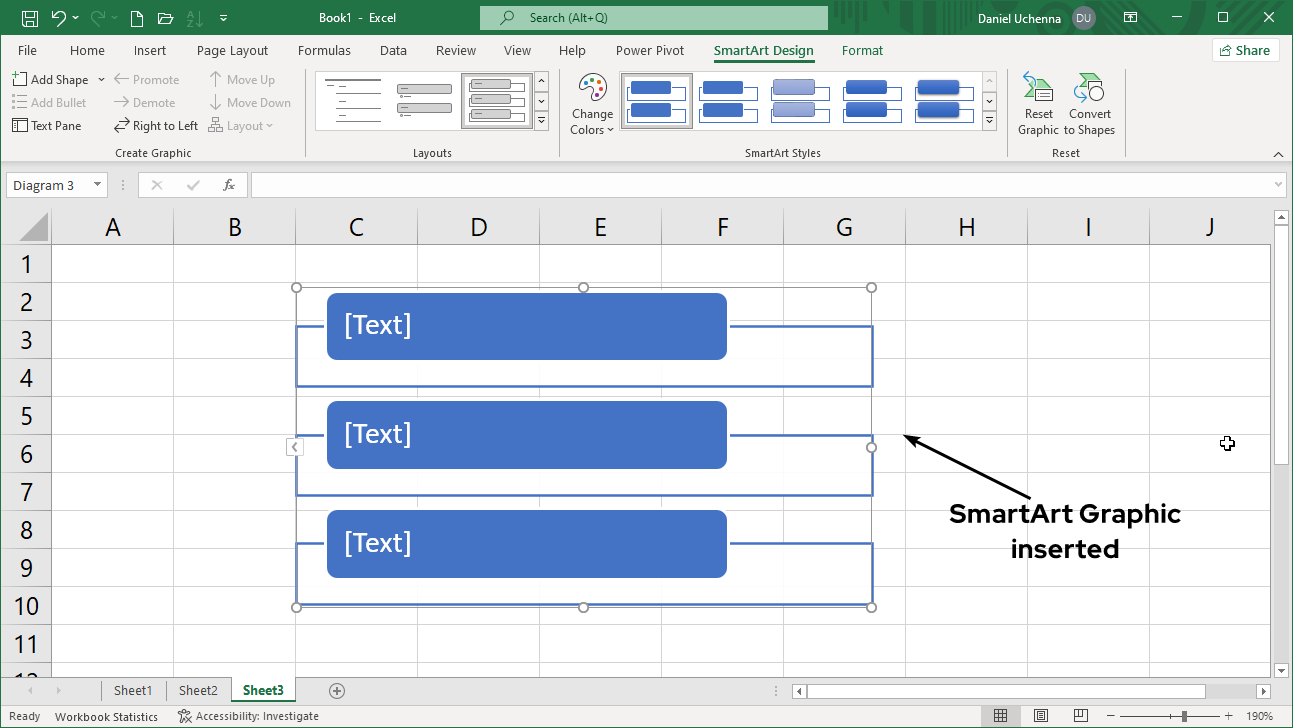

  • Step 4 - Your smart art graphic will be successfully inserted.
    • insert-smart-art
  • FORMATTING SMART ART
  • Step 1 - Click on the smart art you want to format.

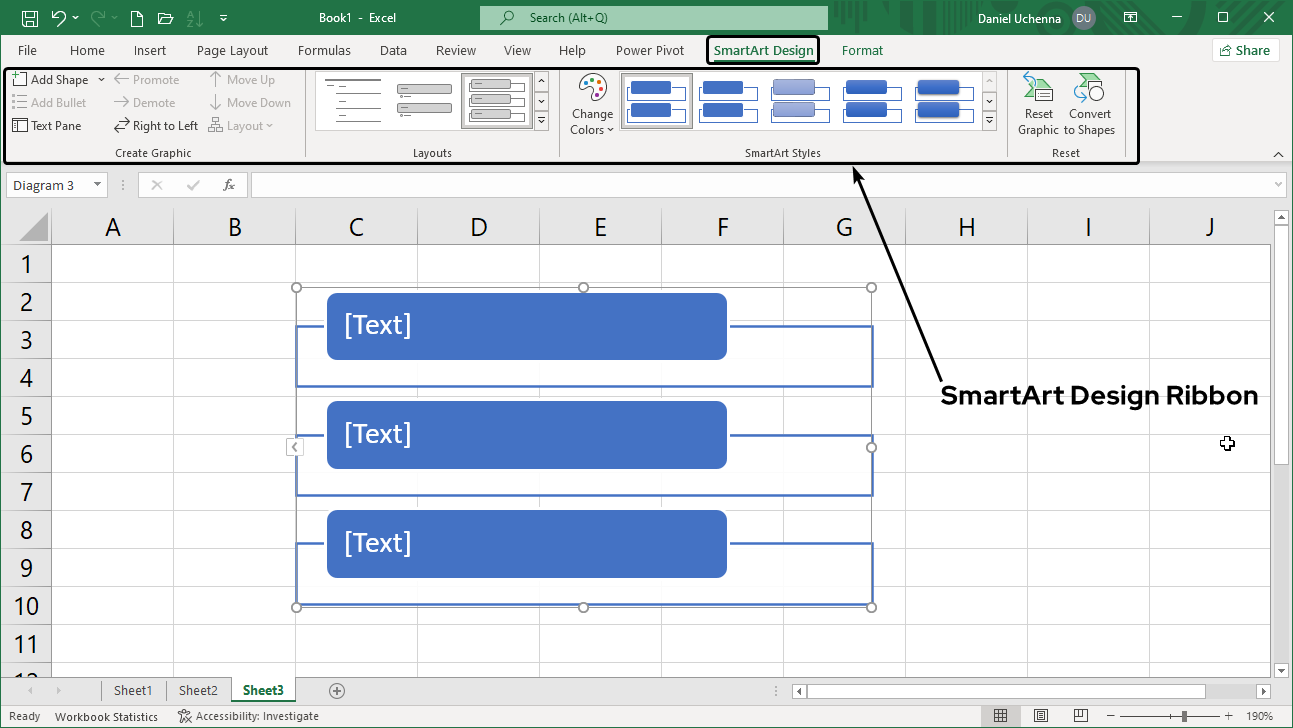

  • Step 2 - In the menu tab, the Smart Art Design tab will be selected. This displays different groups of related commands for you to use and format the smart art.
    • insert-shapes-and-smart-art
    note
    NOTE:

    When you insert a SmartArt, the SmartArt Design tab will automatically show in the menu tab and display its ribbon

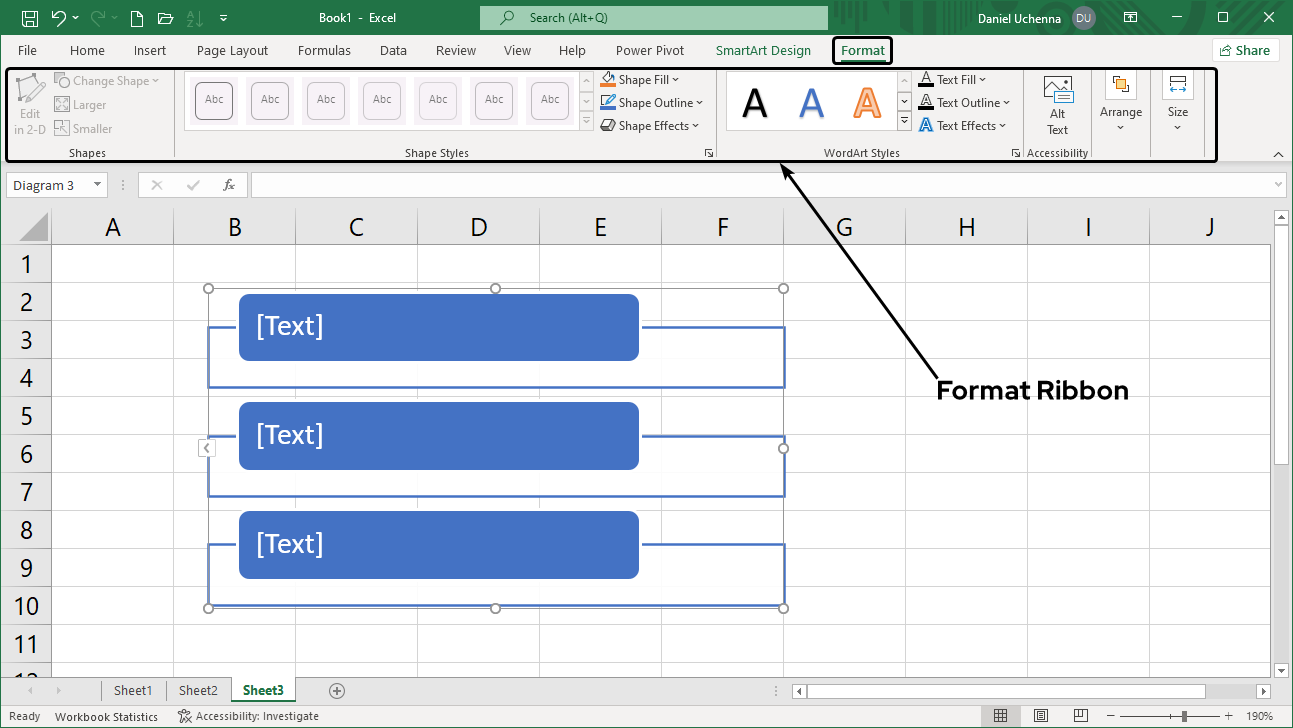

  • Step 2 (Alternate tab) - In the menu tab, click on the Format tab, which will bring out different groups of related commands for you to use and format the smart art.
    • formatting-smart-art

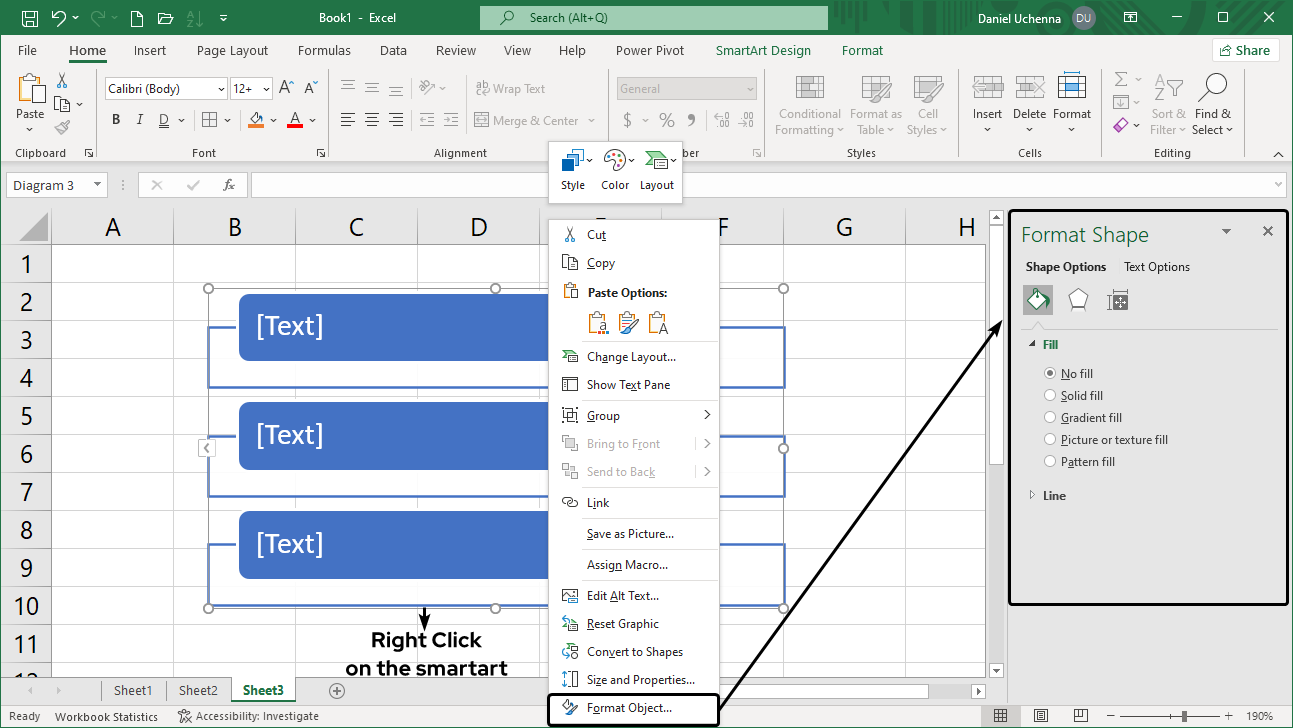

  • Step 2 (Alternate formatting) - Right click on the smart art you want to format, from the dropdown list, move to Format Object and click on it, (This will open the Format Shape pane, from the right side of your excel workbook) then select the options you want to use and start formatting.
    • formatting-smart-art
